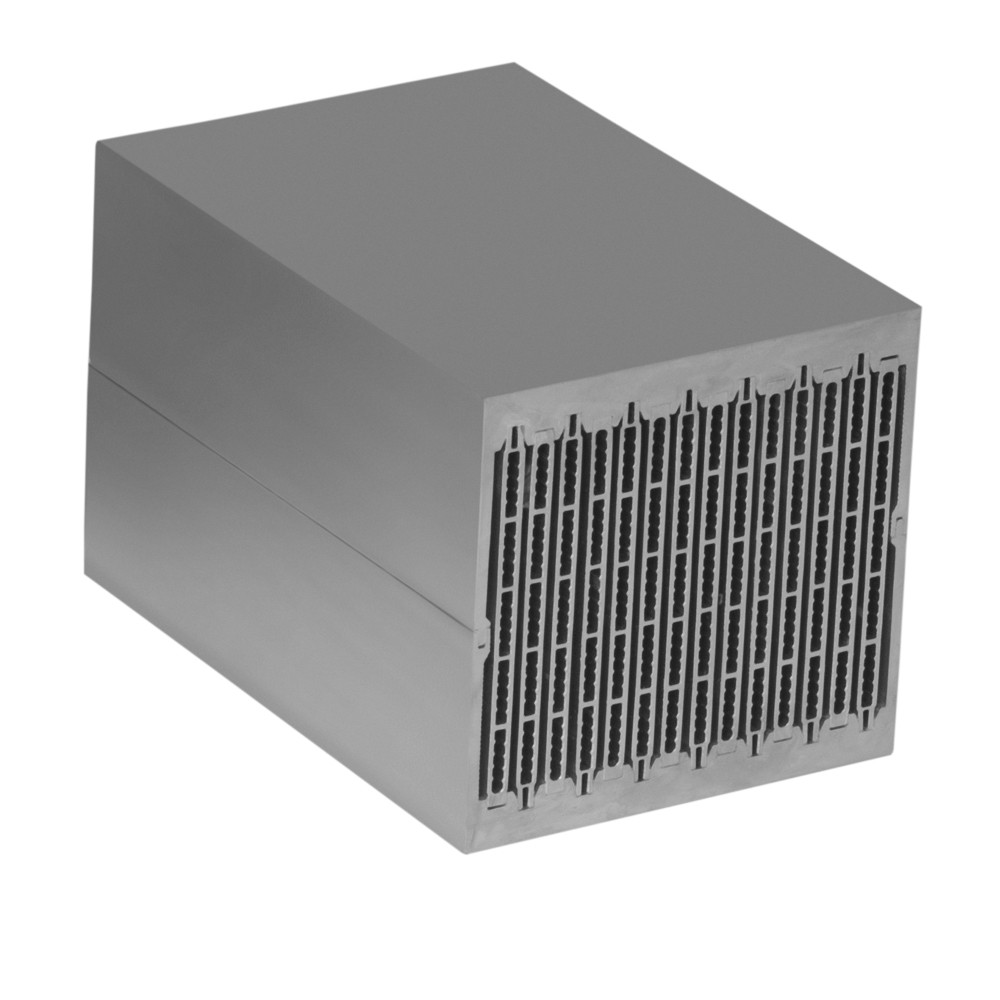

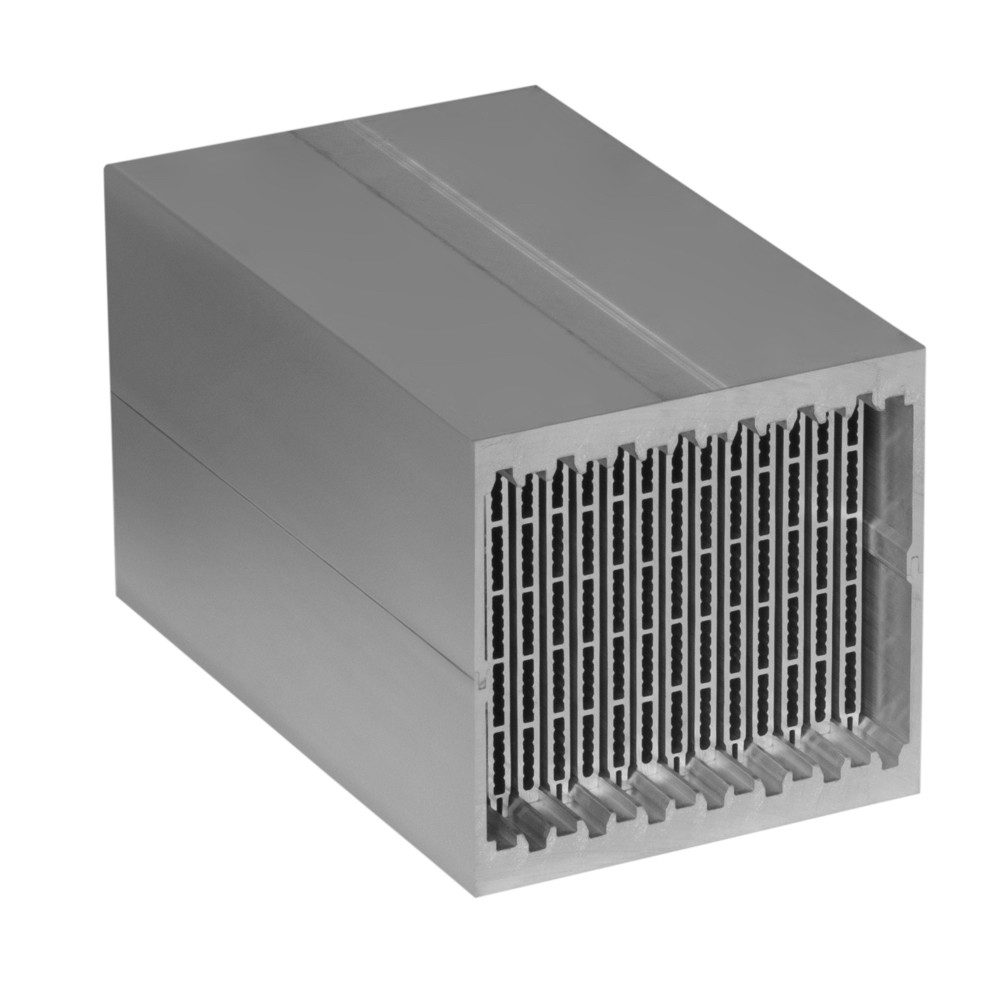

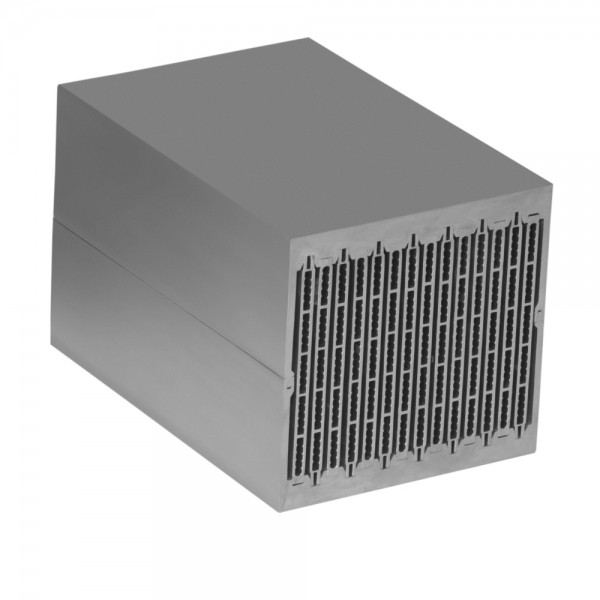

764AS-Set

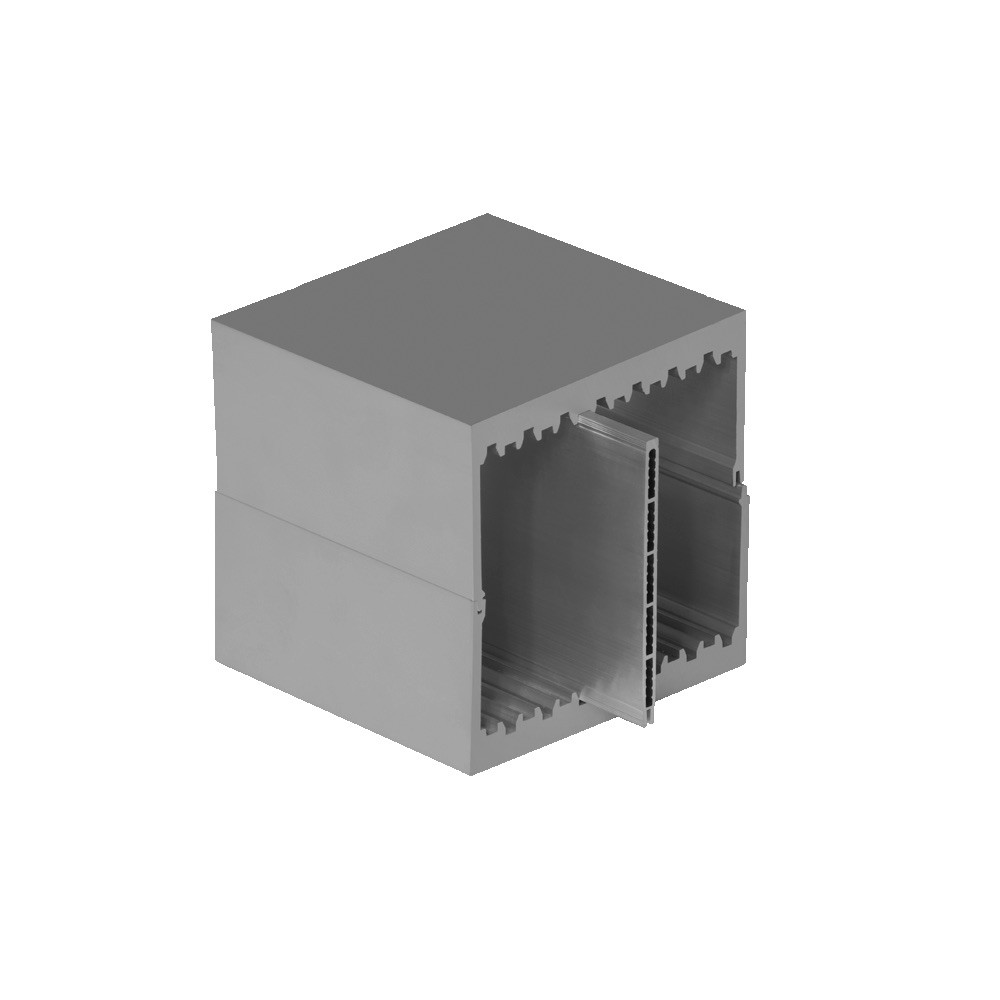

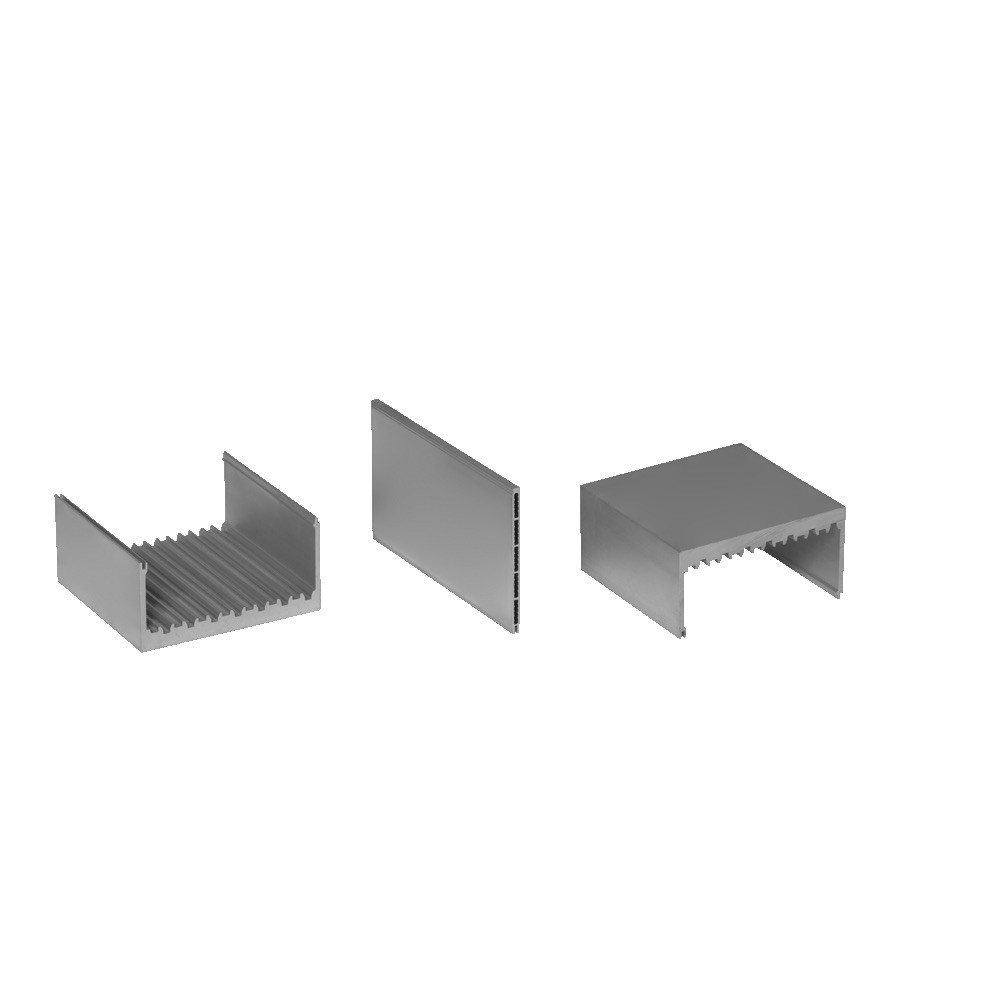

The 764AS-Set is a High Performance heatsink that can be designed to your specific needs. It can be used standalone or as a Forced Convection* Heatsink. The 764AS-Set is manufactured joining two 764AS extrusions and inserting 14x 775AS fin type extrusions side by side. It provides the flexibility to produce the required heatsink in different length options. The production process can be complemented by Milling, if requested, which provides an excellent application surface. In addition, different fabrications that may be required for your application, such as drilling and tapping, can be provided.

Type:           Forced Convection Heatsink
Material:   Aluminum 6063-T5
Surface:     Natural / Black Anodised

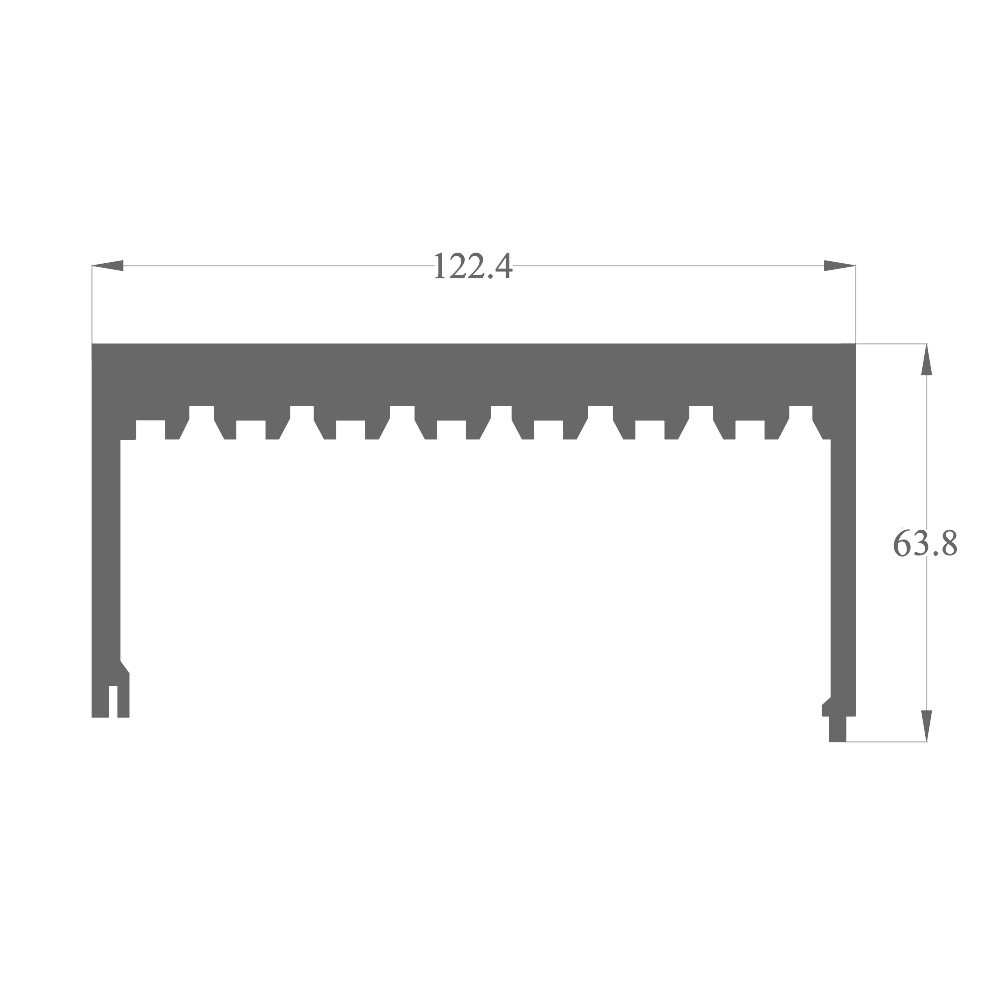

Height:       126mm / 4.96"
Width:        122.40mm / 4.82"

Length Availability
150mm / 5.91" (SKU: 764AS-150)
200mm / 7.87" (SKU: 764AS-200)
250mm / 9.84" (SKU: 764AS-250)
300mm / 11.81" (SKU: 764AS-300)
Custom Lengths up to 3.05m / 10ft

*Forced Convection Heatsinks help to manage the thermal level of your application using forced air cooling. They provide high performance cooling for challenging conditions when used with axial or radial fans.
