903ASL-Set

The 903ASL is a large-scale Flood & Tunnel Light profile with an application surface of 260mm (10.24”) wide. It is designed as a heavy-duty profile to provide high capacity cooling for high output led lighting applications.

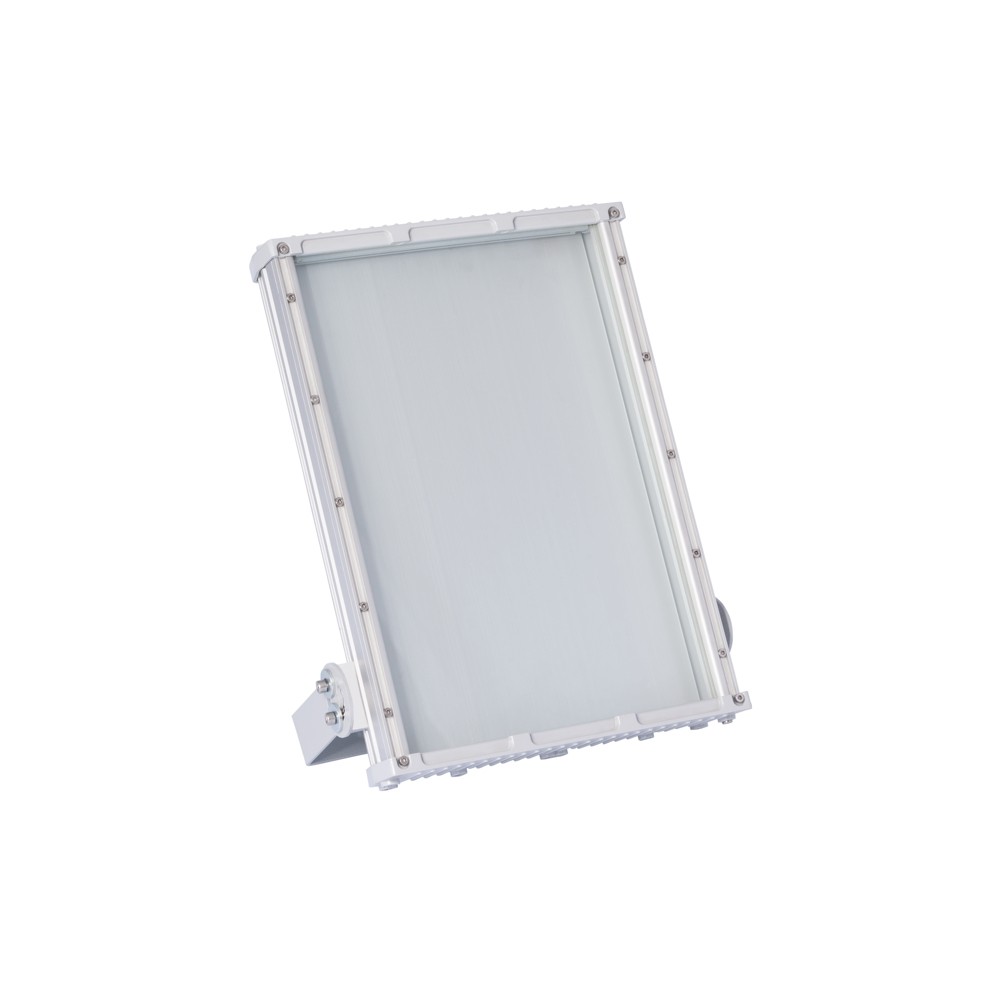

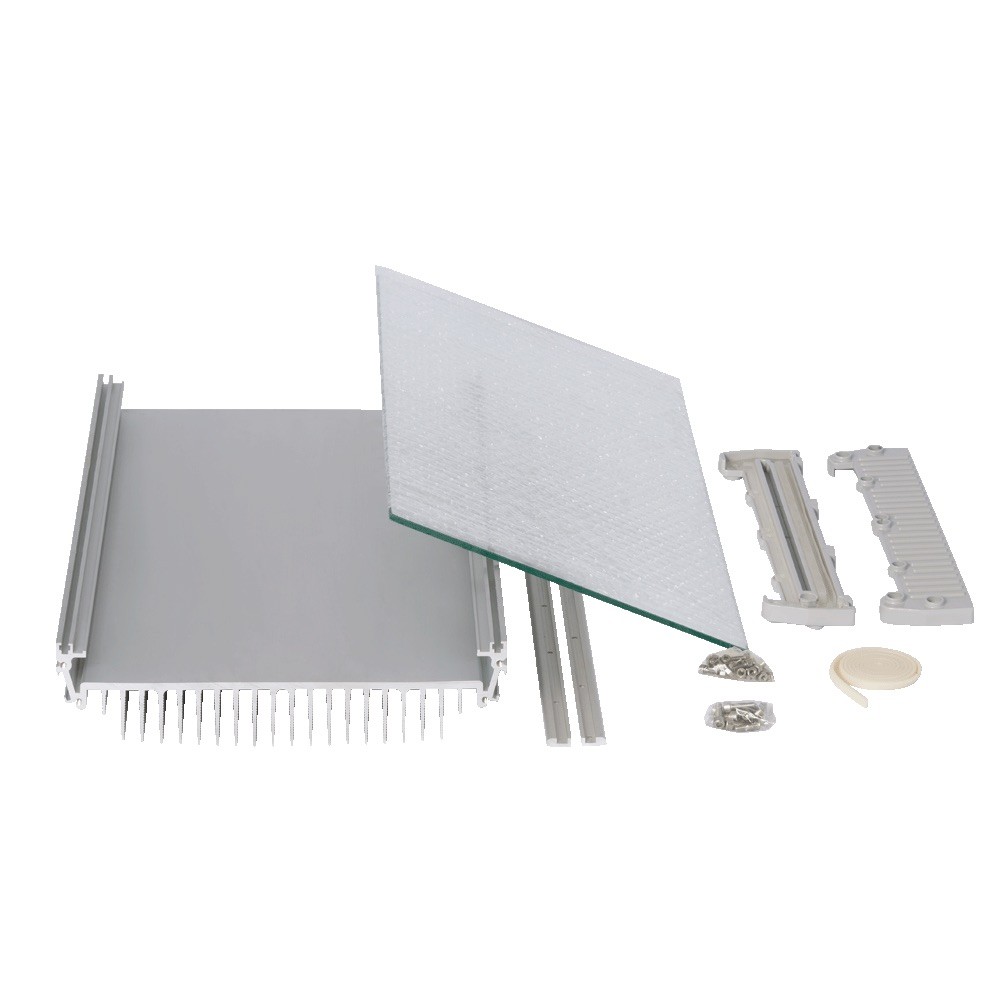

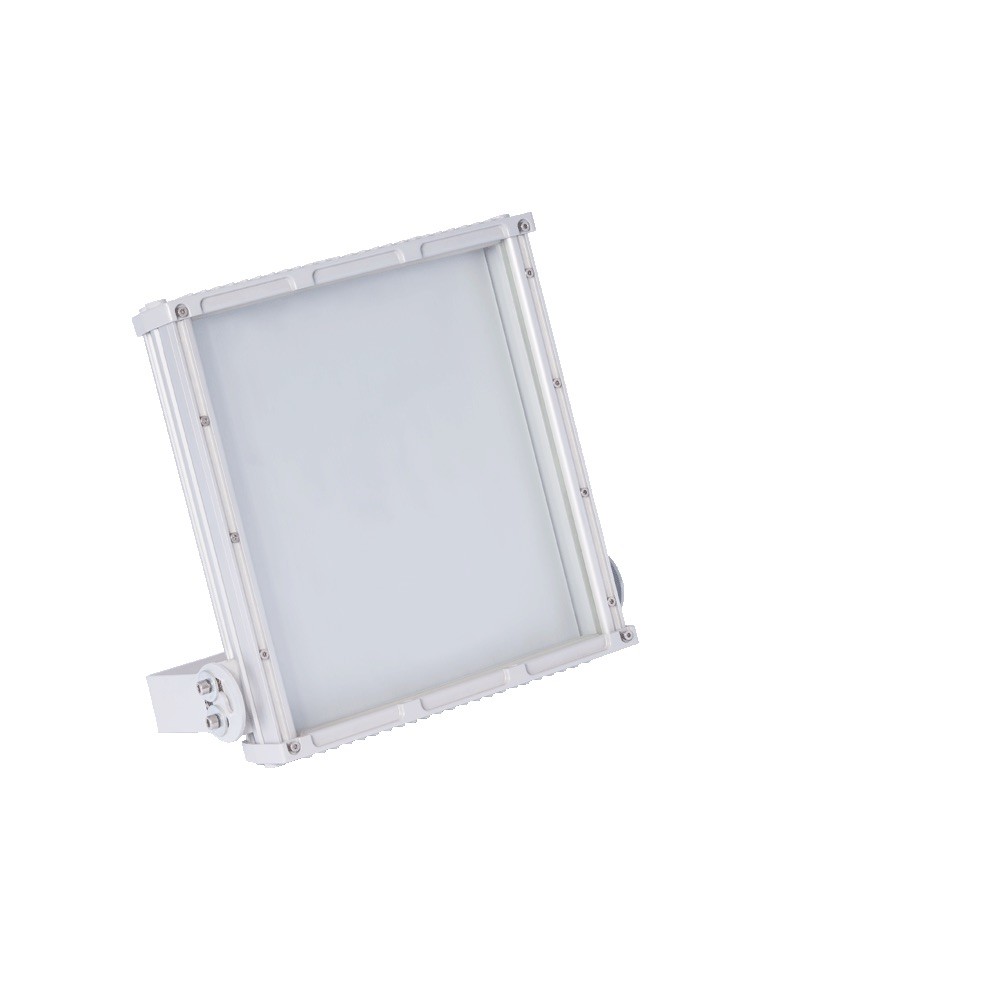

903ASL-Set is offered as an all-inclusive finished product with 300mm (11.81”), 400mm (15.75”) and 500mm (19.69”) options that includes special design Aluminum Side Covers with Gasket, Window Frame Sticks, Window Seal, a Tempered Window and Screw Sets.

Two different mounting options are available for the 903ASL Sets.

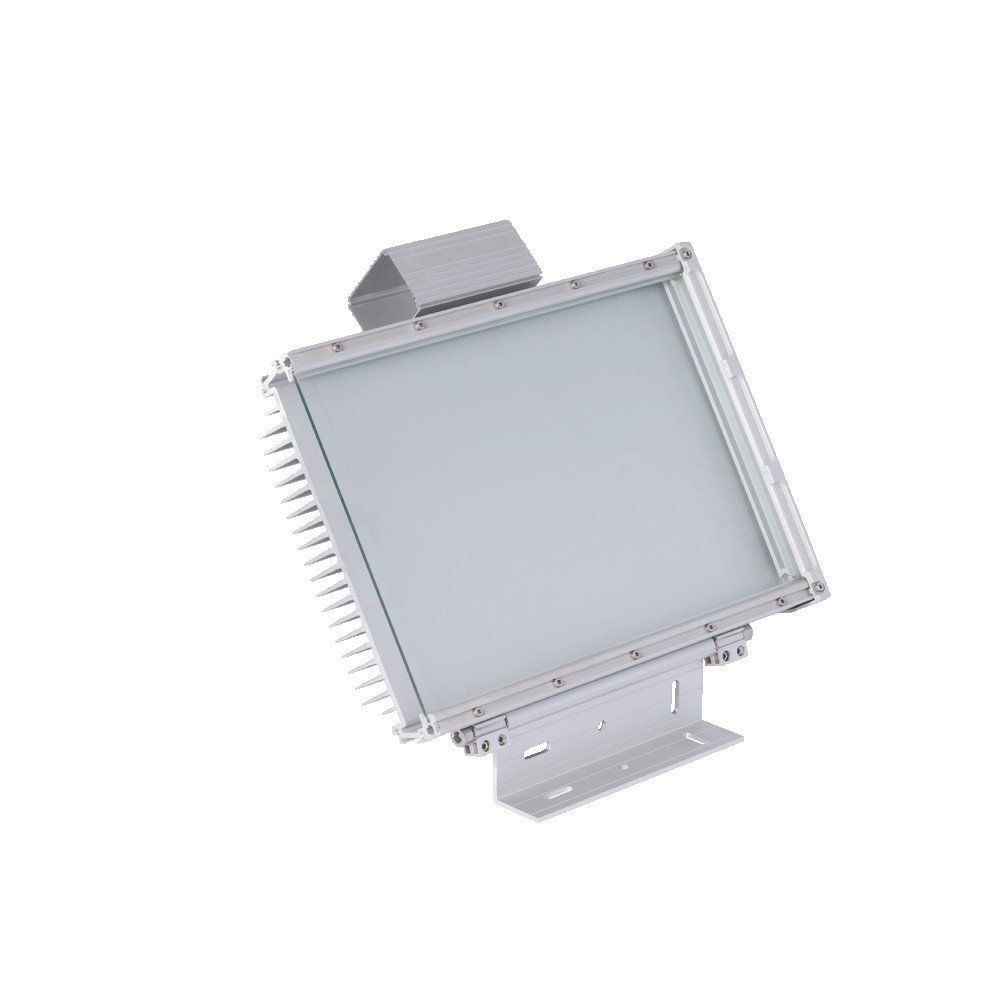

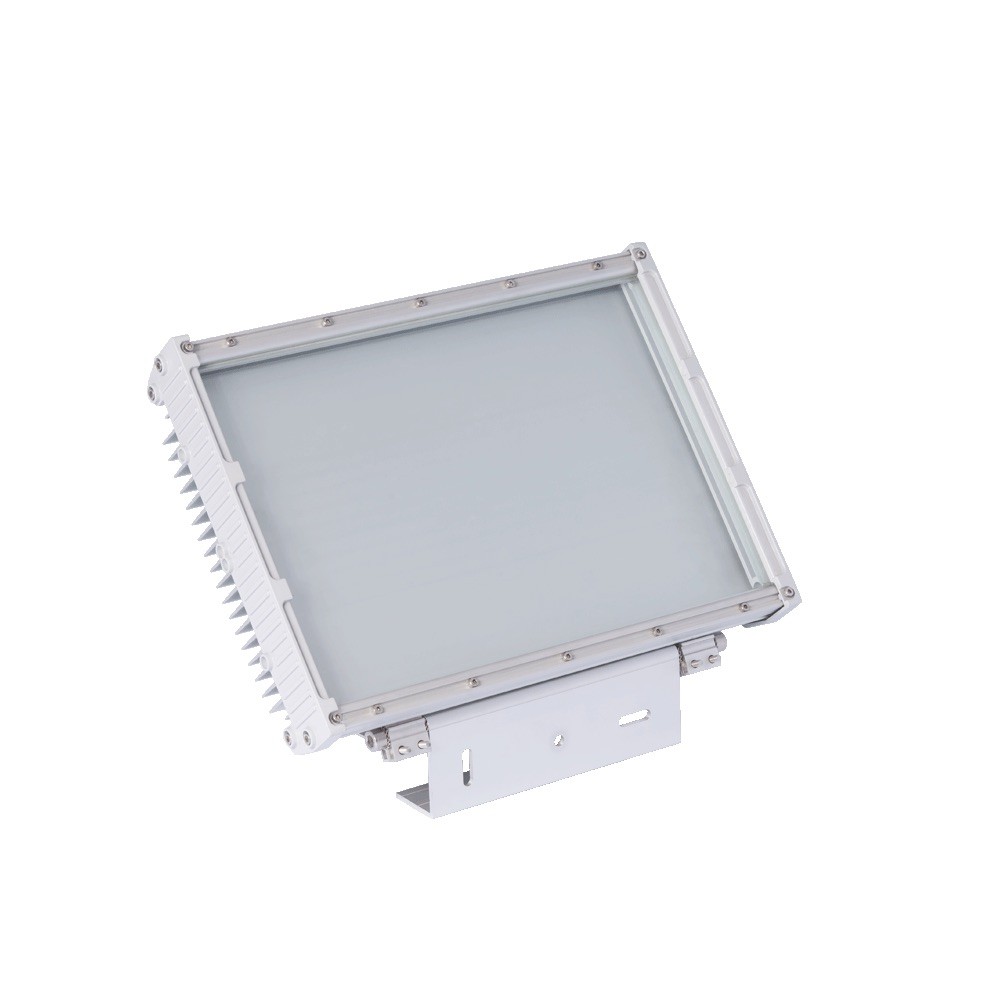

The 903ASL-MNT Mounting Bracket is compatible with 903ASL Sets in all different length options. In addition, the Adjustable Mounting Bracket XL (AMB-XL*) is compatible with 400mm (15.75”) and longer 903ASL Sets.

Projector Sets:              Mounting Options
903ASL 300mm Set:   Set includes 903ASL-MNT
903ASL 400mm Set:   903ASL-MNT or AMB-XL must be ordered separately.
903ASL 400mm Set:   903ASL-MNT or AMB-XL must be ordered separately.

For Driver Housing needs, the 1906ASL* profile is compatible with the 903ASL thanks to the channels on both sides.

* Must be ordered Separately.

Type:           Flood & Tunnel Light Housing
Material:   Aluminum 6063-T5
Surface:     Natural Anodised

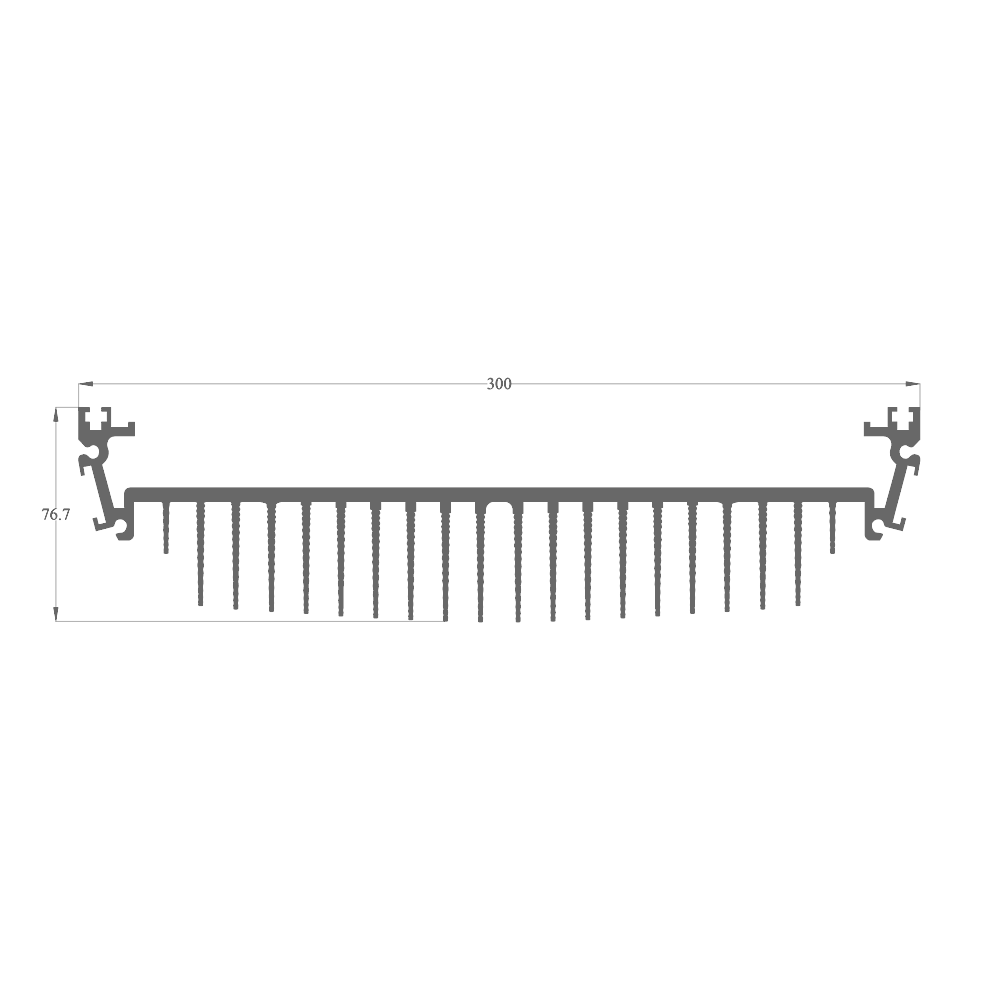

Height:       76.70mm / 3.02"
Width:        300.00mm / 11.81"
