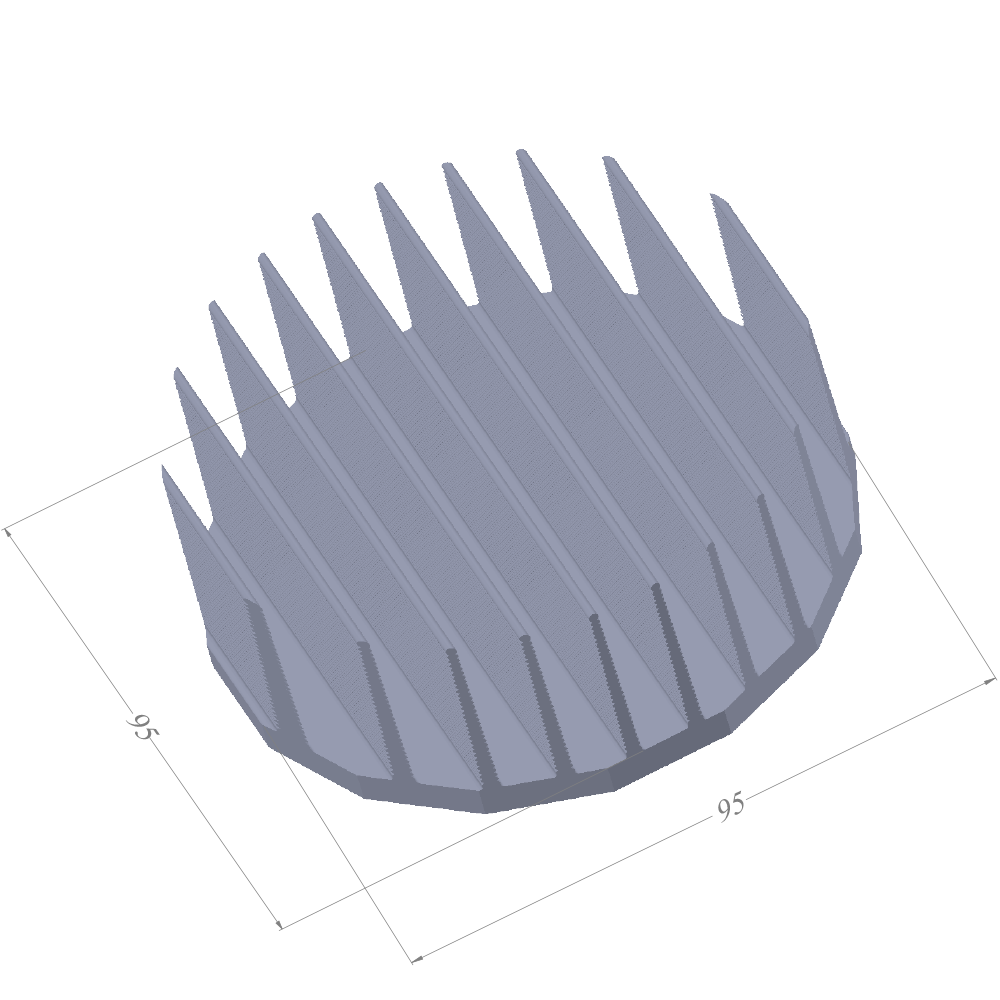

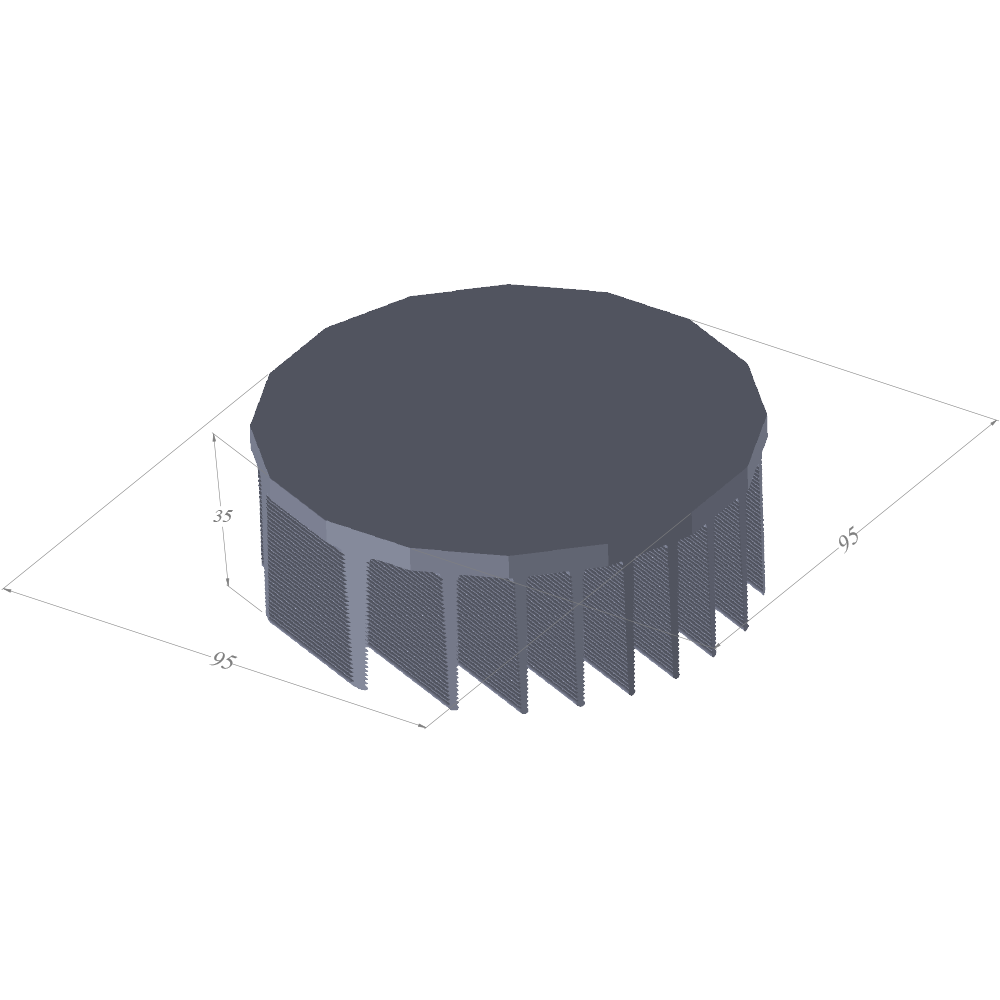

960ASL (⌀95mm/3.74") 16-sided

Type:            16-sided LED Heatsink
Material:   Aluminum 6063-T5
Surface:     Non-Anodised
Diameter: 95mm / 3.74"
Height:       35mm / 1.38"

This 16-sided LED Heatsink is derived from 960ASL Heatsink Extrusion with 16 equal vertical cuts.

It is a purpose-built product for mounting LED PCBs up to 95mm / 3.74" diameter.

Through maximizing the surface contact of LED PCB to increase the heatsink performance, it is a cost effective solution for Round LED Products.
