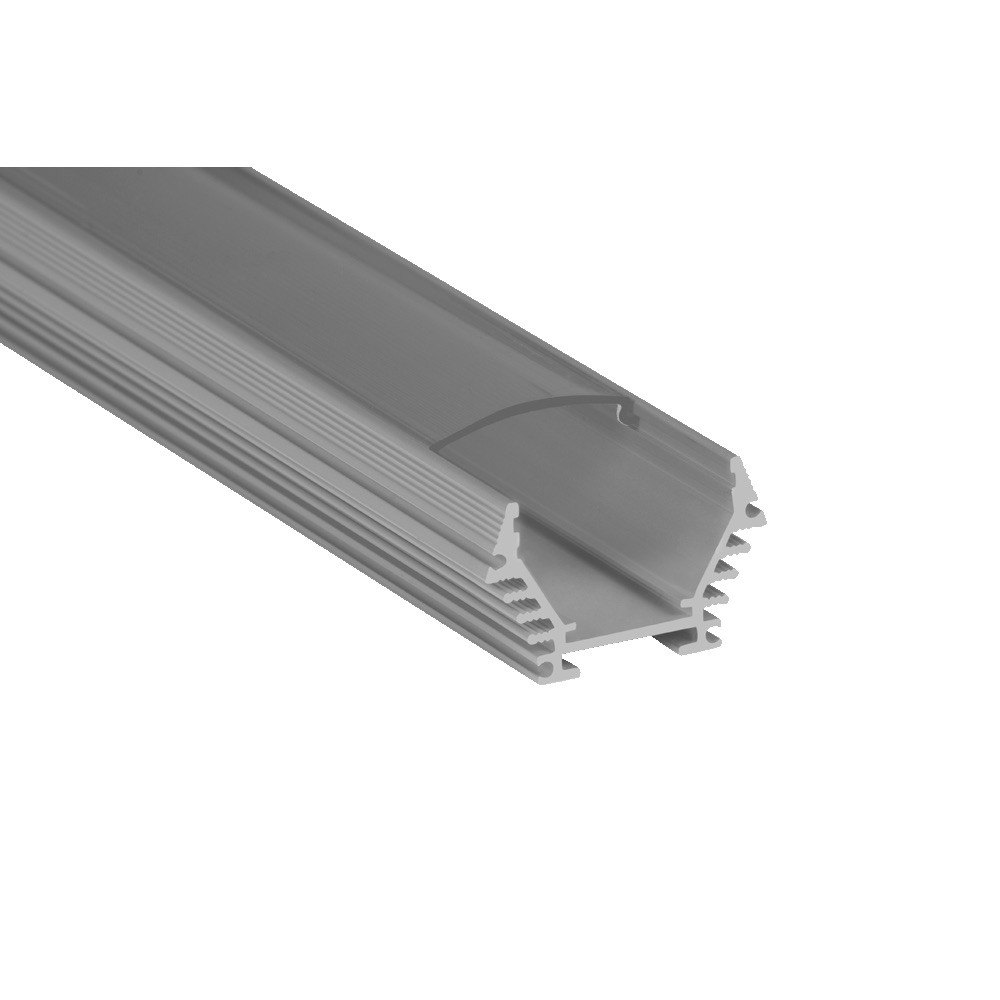

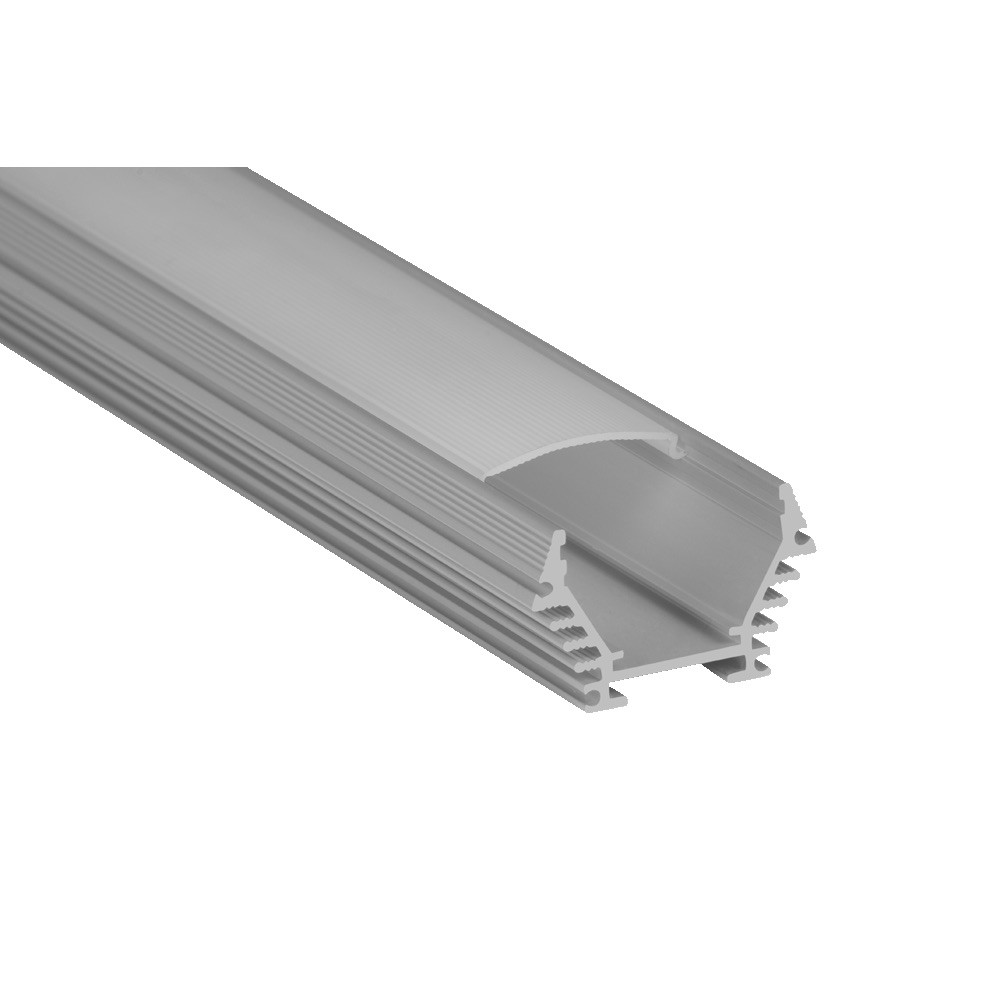

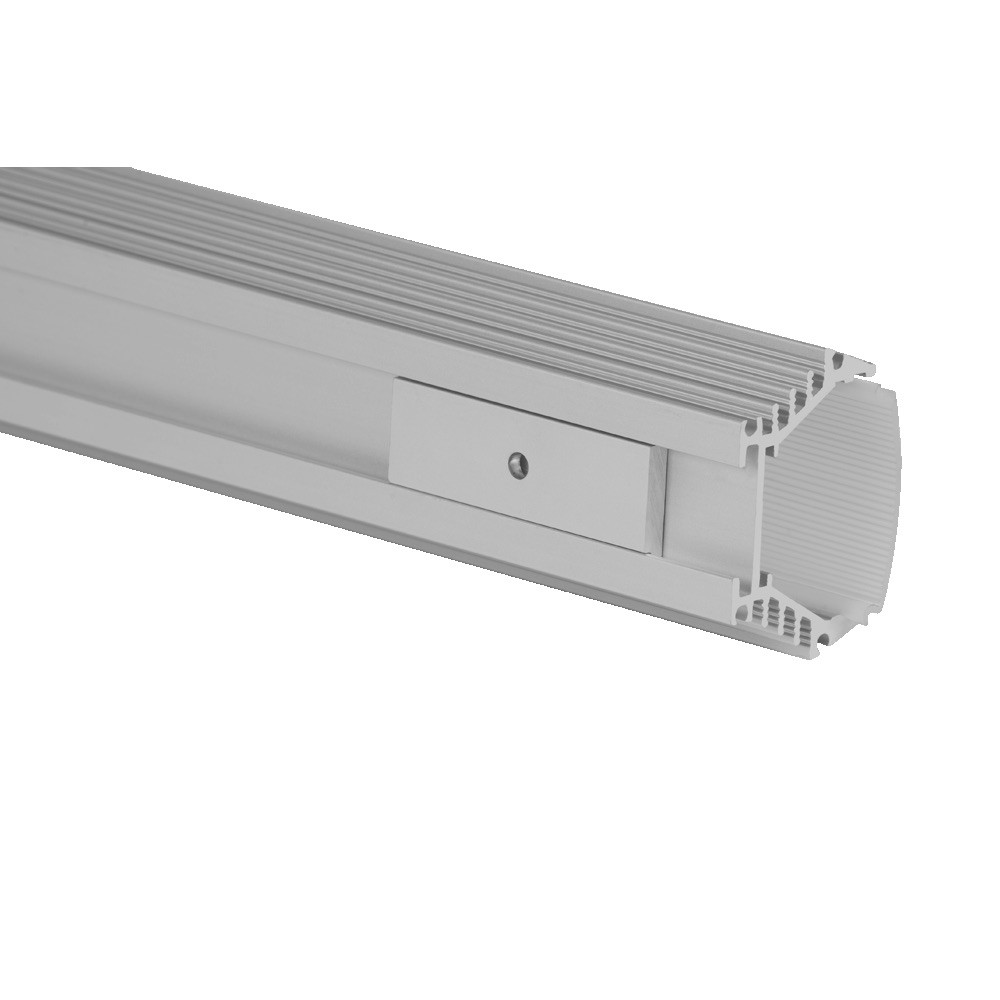

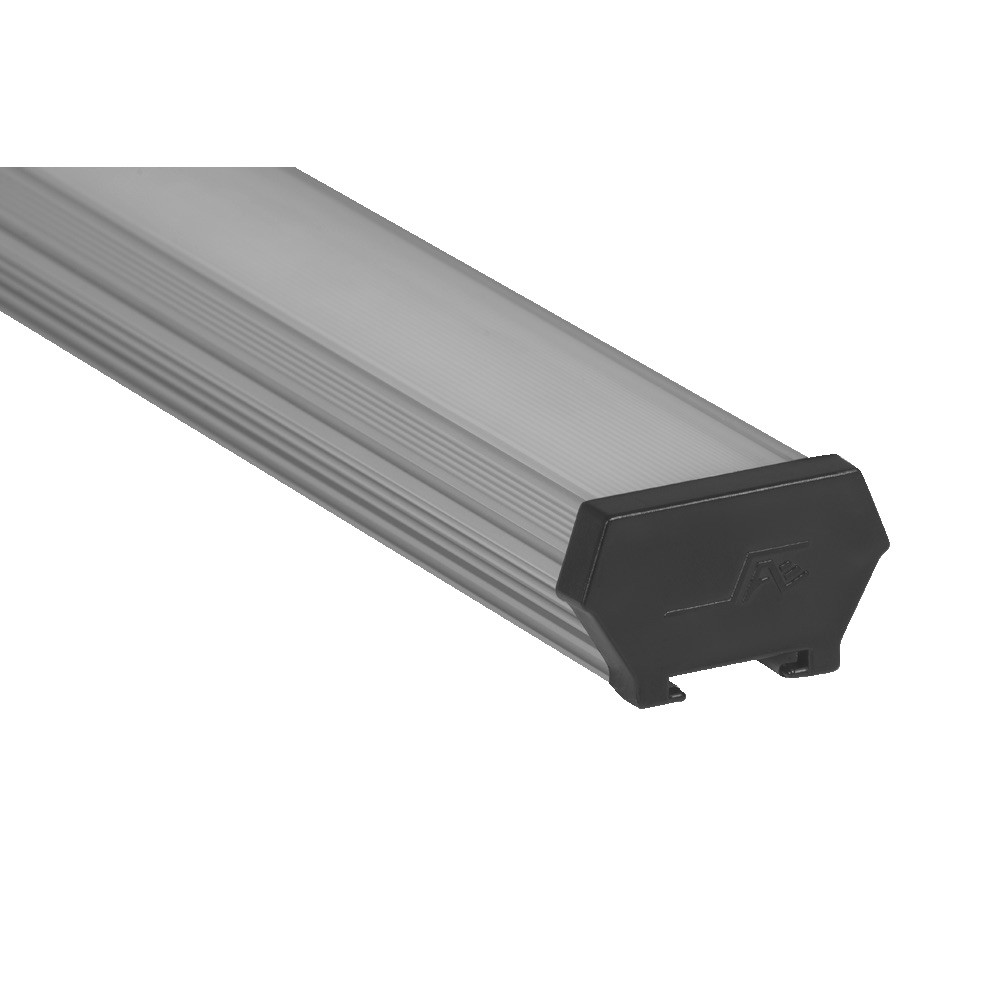

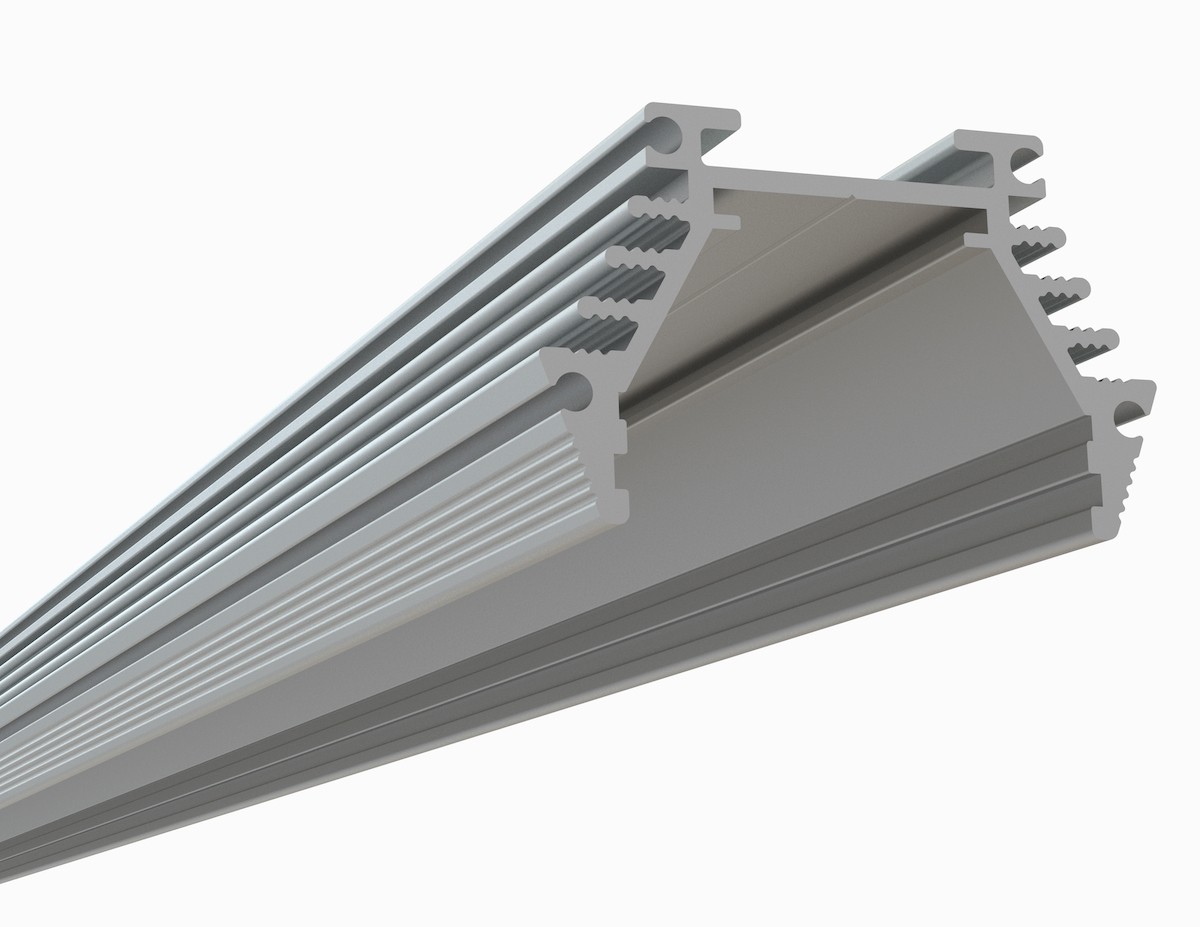

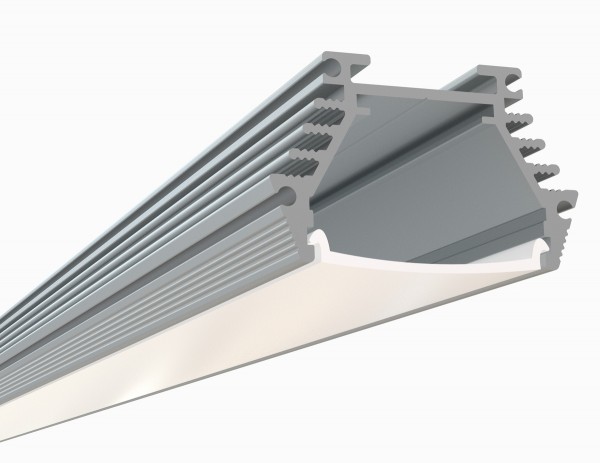

702ASL

The 702ASL is a medium-sized LED Channel compatible with LED Strips up-to 20mm (0.79”) wide. It’s designed for higher output lighting applications (outdoor lighting, wall-washer lighting, horticultural grow lighting etc.)with its heatsink design. This profile offers a uniform lighting with Opal Diffuser eliminating the hotspots. Thanks to its mounting channel, it features a wide range of installation options.

Type:           LED Channel
Material:   Aluminum 6063-T5
Surface:     Natural Anodised
Height:       28.50mm / 1.12"
Width:        45.70mm / 1.80"

Length Availability
4ft (Actual Size 47'') / 1.20m
8ft (Actual Size 94'') / 2.40m
10ft (Actual Size 118'') / 3.00m
Custom Lengths up to 10ft / 3m

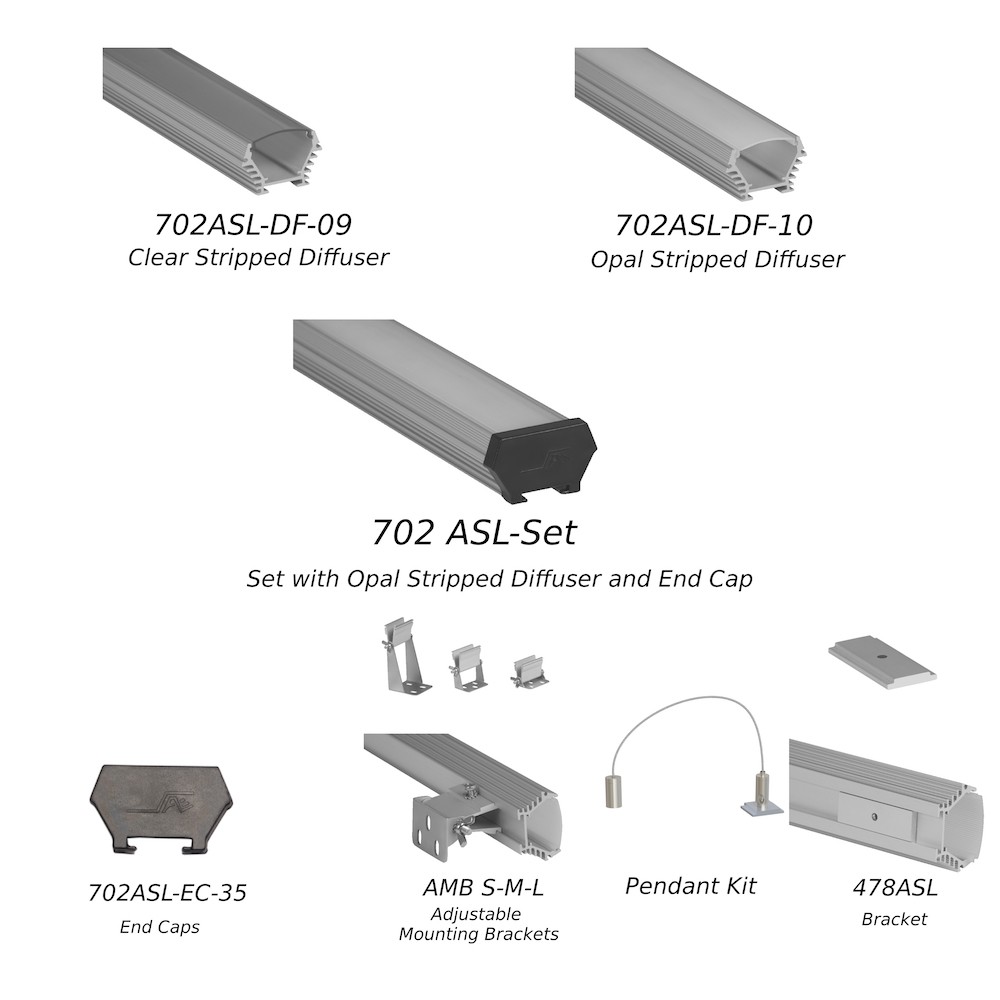

*Diffusers, End Caps and Mounting Accessories must be ordered separately.

DOWNLOAD SPEC SHEET
